  Q1. Working principle and trigger setting of two neighboring exhibitions

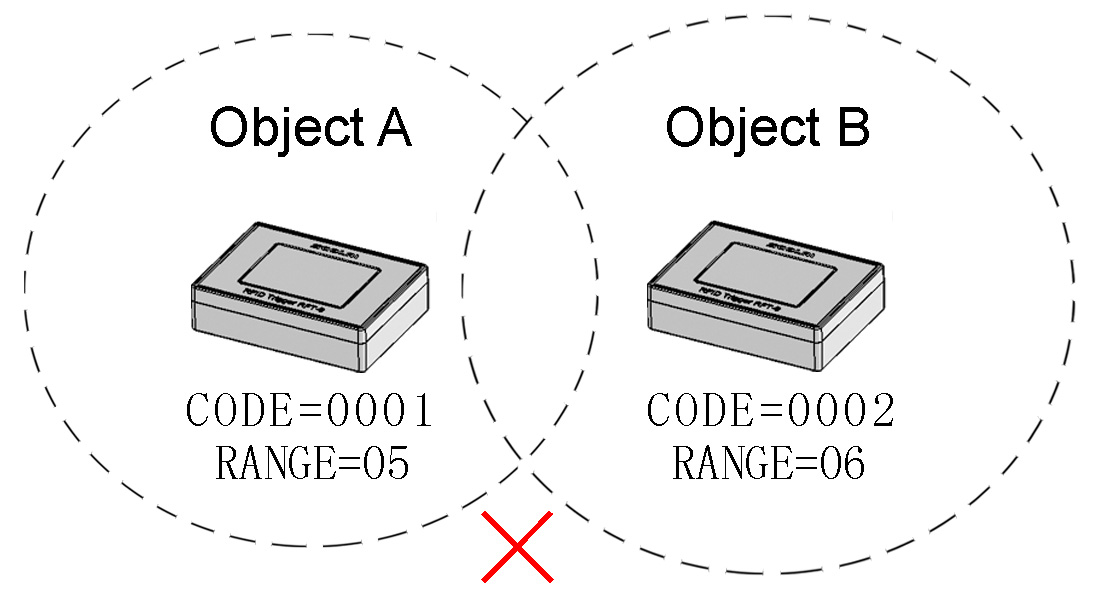

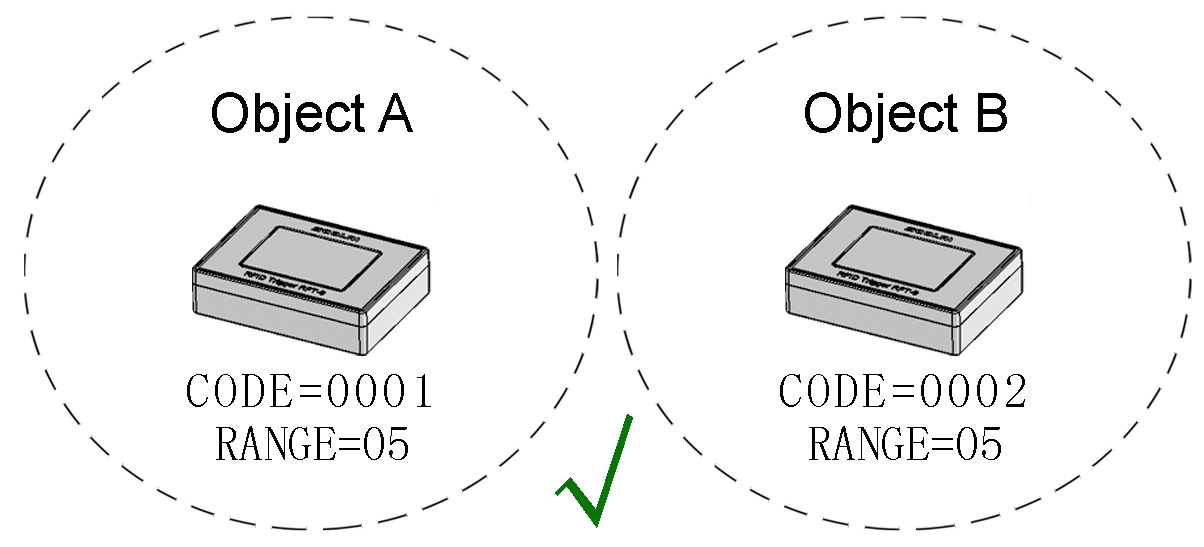

  I. RFID trigger should be placed beside every object and range should be set like the right figure to avoid overlapping.



  One way to avoid overlapping phenomenon is to install more triggers with smaller area and same code in certain area.
  In this way, it will not overlapping with neighboring object.




  II. If overlapping is inevitably, please set the “Spell trigger” menu item to “Enable” or “Intelligent” to avoid this problem.




  Enable: In this state, all the codes have been triggered previously will not be triggered again. (For Rental mode)
  Disable: In this state, it will trigger when received new signal no matter has been triggered or not.
  Intelligent: In this state, when it received new signal, it will firstly judge if the received signal code is last play
  record or not. If the code is last play record, it will not trigger by this code again.


  Audio guide unit will work in three different situations as below:




  A. If “Spell trigger” menu item is set to “enable”, audio guide unit will work like this:
  ① Visitor arrived at site A, audio guide unit is triggered by code 0001.
  ② Visitor arrived at site B, audio guide unit is triggered by code 0002.
  ③ Visitor arrived at site C, audio guide unit is triggered by code 0003. Because it has been triggered code 0002
  just now at site B, it will not be triggered by code 0002.
  ④ Visitor arrived at site D, it will keep playing current audio of code 0003.
  ⑤ Visitor arrived at site E, audio guide unit will not be triggered again because has been triggered by code 0002.
  It will keep playing current audio of code 0003.
  ⑥ Visitor arrived at site F, audio guide unit will not be triggered again because has been triggered by code 0002.
  It will keep playing current audio of code 0003.
  ⑦ Visitor arrived at site G, audio guide unit will not be triggered again because has been triggered by code 0001.
  Remark: If you have enabled spell trigger mode, please re-decode the audio guide unit by WD-900 before use
  it next time.

  B. If “Spell trigger” menu item is set to “disable”, audio guide unit will work like this:
  ① Visitor arrived at site A, audio guide unit is triggered by code 0001.
  ② Visitor arrived at site B, audio guide unit is triggered by code 0002.
  ③ Visitor arrived at site C, audio guide unit is triggered continuously between code 0002 and 0003.
  ④ Visitor arrived at site D, audio guide unit is triggered by code 0003.
  ⑤ Visitor arrived at site E, audio guide unit is triggered continuously between code 0002 and 0003.
  ⑥ Visitor arrived at site F, audio guide unit is triggered by code 0002.
  ⑦ Visitor arrived at site G, audio guide unit is triggered by code 0001.

  C. If “Spell trigger” menu item is set to “Intelligent”, audio guide unit will work like this:
  ① Visitor arrived at site A, audio guide unit is triggered by code 0001.
  ② Visitor arrived at site B, audio guide unit is triggered by code 0002.
  ③ Visitor arrived at site C, audio guide unit is triggered by code 0003. Because last playing record is audio
  of code 0002, it will not be triggered by code 0002 again.
  ④ Visitor arrived at site D, it will keep playing current audio of code 0003.
  ⑤ Visitor arrived at site E, audio guide unit will not be triggered by code 0002 again because last
  playing record is audio of code 0002. It will keep playing current audio of code 0003.
  ⑥ Visitor arrived at site F, audio guide unit will not be triggered by code 0002 because last playing record
  is audio of code 0002.
  ⑦ Visitor arrived at site G, audio guide unit will be triggered by code 0001, because last play record is
  audio of code 0002, not code 0001 itself.
